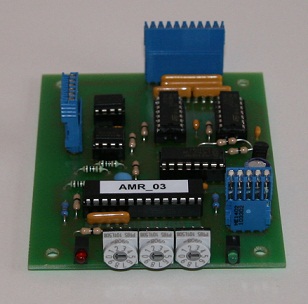

DMX8 AMR PCB

Works with:


Price:
£90.00 Excluding VAT

Product Number:
09401

Further information:





DMX8 AMR PCB

AMR = (Analogue , Merge, Replace)

An eight channel analogue input 0-10v +V or 0-5v +V converter to DMX512 PCB.

The eight analogue channels can be set to merge with incoming DMX data (Highest Takes Precedence) or replace channels of DMX. The number of replaced channels can be set from 1 through 8. The card can create its own DMX source if there is no DMX on the input or can be set to transmit only when receiving.

Displays for power / card OK and data in.

Includes BCDs and LEDs.

In addition the card can be set to interface with 0 to 5volts analogue to full, making it ideal for logic or switch interfaces to DMX512.

Specifications:

Dimensions

Length:
100.00mm
Depth:
75.00mm
Height:
25.00mm
Weight:
0.10Kg (approx)


Supply voltage

9-15v DC


Packaging

PCB Cardset

Colour

N/A
