DMX1 Relay PCB RDM

Works with:


Price:
£58.50 Excluding VAT

Product Number:
09404

Further information:

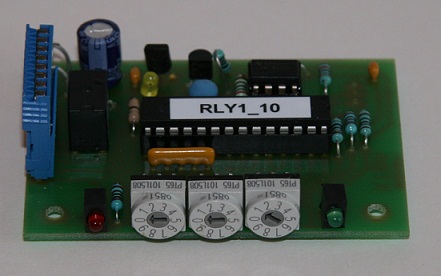

DMX1 Relay PCB

*Now upgraded specification - Now fully RDM enabled with an emergency mode added...

A one channel DMX to normally open or closed relay PCB.

The relay switch level can be user set in 10% steps. The card can be user set for normally open or closed relays. The relays will switch at the set level and switch back at 1% less to allow for noisy desks.  Displays for power, data and relay active.

Emergency mode allows the relay to close in the event of DMX loss.

If the BCD switches are set for 600 the card will enter test mode and allow for local control e.g. 601 = relay one closed/open.

Relays rated at 100ma. RDM enabled.

Includes BCDs and LEDs.



Revised manual now online, click the link below the price!



Specifications:

Dimensions

Length:
74.00mm
Depth:
44.00mm
Height:
23.00mm


Supply voltage

9-15v DC


Packaging

PCB Cardset

Colour

N/A
