XTBA

DMX1 Decoder PCB

Works with:


Price:
£58.50 Excluding VAT

Product Number:
09403

Further information:

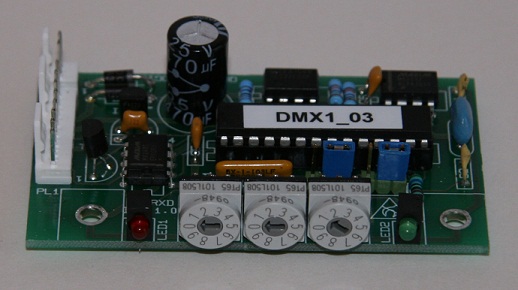

DMX1 Decoder PCB

A one channel DMX to analogue 0-10v +V converter on a PCB.

The unit has an additional open collector switch which will be turned on if the selected channel level is above 10%. This feature allows the card to be used with fluorescent ballasts etc.

Includes BCDs and LEDs.

Displays for power / card OK and data.

Specifications:

Dimensions

Length:
74.00mm
Depth:
44.00mm
Height:
23.00mm


Supply voltage

9-15v DC


Packaging

PCB Cardset

Colour

N/A
